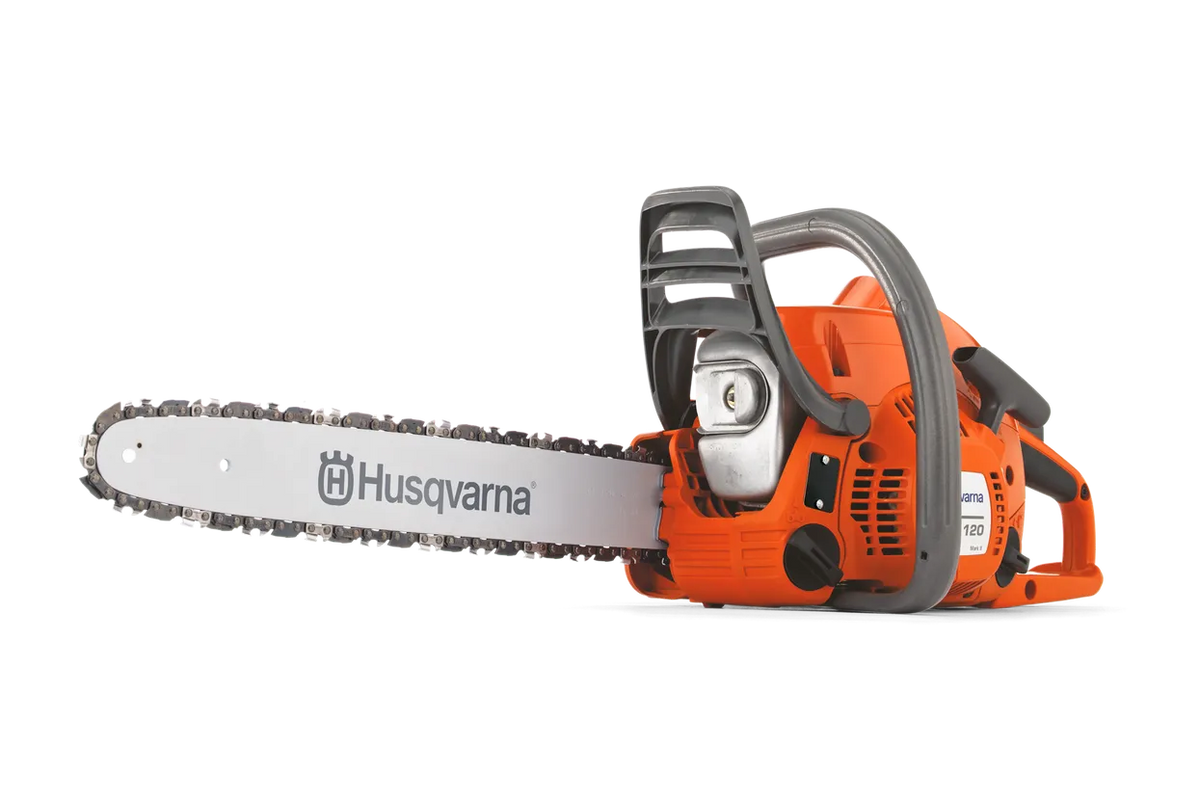

Husqvarna 120 Chainsaw

Husqvarna

Options

120

For performance without the frills, trust the Husqvarna 120. This all-round gas saw features our proprietary X-TORQ® engine to deliver superior performance, increased fuel efficiency and low emissions. Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter. And LowVib® technology keeps this saw comfortable to use, no matter the task.

Features

Powerful and Efficient

X-TORQ® Engine X-Torq® engines deliver a great power and torque thanks to highly efficient combustion.

LowVib® Technology

Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably

Quick Start with Air Purge

Air purge removes air from carburetor and fuel system for easy starting

Air Injection™ Technology

Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life

Separate Choke/Stop Switch Controls

Stop switch automatically resets when the choke is pulled out to help prevent accidental flooding

Inertia-Activated Chain Brake

Reduces the likelihood of injury due to kickback.

Engine	16", 3/8 pitch, .050 ga. 38cc chainsaw FA CraftBx SKU: 970 51 50‑16
Chain speed at max power	55 fts
Cylinder displacement	2.33 cu.inch
Power output	1.88 hp
Clutch engagement speed (±120)	4,250 rpm
Electrode gap	0.02 in
Idling speed	3,000 rpm
Ignition module air gap	0.01 in
Maximum power speed	9,000 rpm
Oil pump type	Automatic
Spark Plug	Champion RCJ7Y
Equipment
Recommended bar length, min	14 in
Pitch	3/8" mini
Recommended bar length, max	18 in
Chain type	H37
Bar length	40 cm
Bar length (inch)	16 in
Sprocket type	Spur 6
Gauge	.050"
Dimensions
Weight (excl. cutting equipment)	10.7 lbs
Sound and noise
Sound pressure level at operators ear	100.7 dB(A)
Sound power level, guaranteed (LWA)	113 dB(A)
Sound power level, measured	100.7 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	2.7 m/s²
Equivalent vibration level (ahv, eq) front handle	2.1 m/s²
Lubricant
Oil tank volume	0.32 US pint
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO2 EU V)	957 g/kWh
