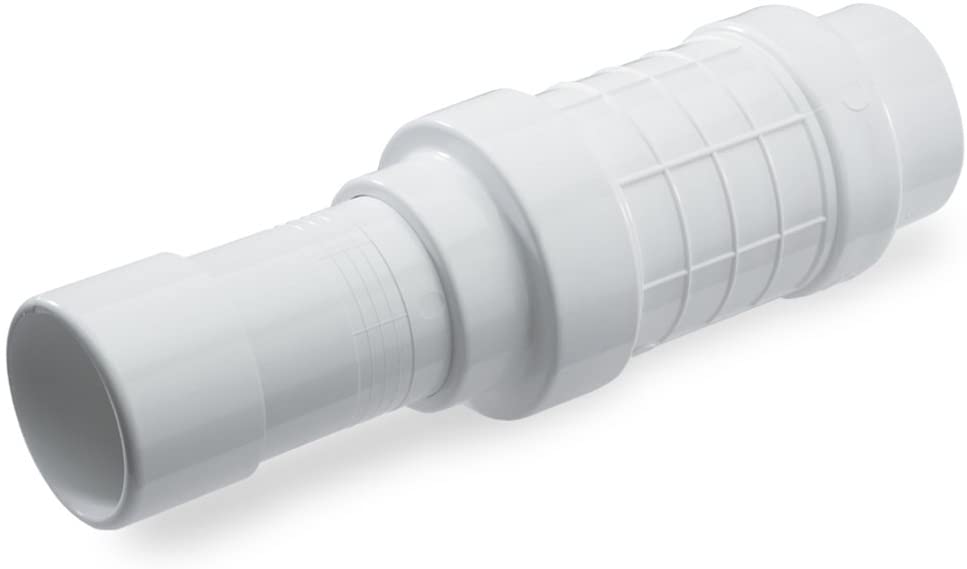

NDS Quik-Fix™ Expansion Repair Coupling

NDS

Options

RATED @150 PSI STATIC PRESSURE @ 72°F
MOLDED IN THE USA
MADE OF PVC TYPE I MATERIAL
EPDM O-RING
NSF/ANSI 61+372, UPC LISTED
IPS HUB X IPS SPIGOT
IPS—IRON PIPE SIZE (SAME AS SCH 40)
SPIGOT (SAME AS PIPE OUTSIDE DIAMETER)
HUB—FITS IPS PIPE
RESTRAIN ALL PIPE MOVEMENT

Features

Patented Grip-Lock technology prevents piston from spinning when inserting onto pipe and allows the use of the body as a handle; easy-grip bars make it easier to twist even with wet and muddy hands
Dual-seal safety design stops the leak before it starts
True-Cut positioning automatically positions the piston seals in the body correctly, eliminating joint-separation stress caused by temperature swings, ground movement, or changes in line pressure

Applications

Replace and fix damaged irrigation pipe or plumbing mainline to effectively stop leaks with convenient features that make pipe repairs easier
Ideal for repairing PVC pipe used for in-ground or surface outdoor sprinkler systems; can also be used in the installation of a PVC valve or tee
As part of an outdoor sprinkler/irrigation system, the expansion repair coupling repairs and replaces broken PVC pipe and connects two pipes of the same size and type together to convey water
